Plot trackframes

Source: R/plot.R
plot.trackframe.Rd

Plots coordinates of objects of class trackframe based on tinyplot functionality.

Usage

# S3 method for class 'trackframe'
plot(
  x,
  lines = TRUE,
  lines_style = list(alpha = 0.5),
  points = TRUE,
  points_style = list(pch = 19),
  start_indicator = TRUE,
  start_indicator_style = list(arrowhead_loc = 0.001, length = 0.1, lwd = 3),
  end_indicator = TRUE,
  end_indicator_style = list(arrowhead_loc = 0.001, length = 0.1, code = 1, angle = 90,
    lwd = 3),
  marker = NULL,
  marker_style = list(pch = 22, col = "black", cex = 2),
  facet = FALSE,
  facet.args = list(),
  theme = NULL,
  xlab = sprintf("easting (%s)", easting_col(x)),
  ylab = sprintf("northing (%s)", northing_col(x)),
  asp = 1,
  ...
)

Arguments

x

an object of class trackframe

lines

logical should lines be plotted?

lines_style

list of graphical parameters passed to tinyplot::tinyplot() when plotting lines

points

logical should points be plotted?

points_style

graphical parameters passed to tinyplot::tinyplot() when plotting points

start_indicator

logical indicator if arrows indicating start point of each track should be added

start_indicator_style

list of graphical parameters for start indicator. See section 'x_indicator_style'.

end_indicator

logical indicator if arrows indicating endpoint of each track should be added

end_indicator_style

list of graphical parameters for end indicator. See section 'x_indicator_style'.

marker

character column name of logical column indicating which points to mark

marker_style

list of graphical parameters passed to tinyplot as markers are being drawn

facet

logical should the plot be facetted by track?

facet.args

list of arguments controlling facet behavior. If ncol is unspecified, an attempt is made chose a visually pleasing value. See tinyplot

theme

character or list:

  1. NULL (default): Use currently set tinyplot theme if one is set. Otherwise use trackframe default.

  2. a string naming a built-in tinyplot theme vignette("themes", package = "tinyplot") or

  3. a list of graphical parameters defining a custom theme

xlab

a title for the x axis

ylab

a title for the x axis

asp

numeric y/x aspect ratio

...

additional graphical parameters passed to tinyplot

Value

No return value, called for side effect of producing a plot.

x_style

The arguments lines_style, points_style, start_indicator_style, end_indicator_style and marker_style each take list of argments passed to tinyplotto style the corresponding element.

Possible arguments can come from:

Parameters in ... can come from the same lists and are applied to the entire plot.

x_indicator_style

Start/end indicators are arrows that point from the start/endpoint of each track toward the second/penultimate point. In addition to standard arrow paramenters, start_indicator_style and end_indicator_style can have a key: arrowhead_loc which controls how far along the first/last segment the arrow extends. 0 refering to putting the arrow having the head only. and 1 referring to having the arrow extend to second/penultimate point. .001 inch is added to the user-provided value to ensure arrow direction can be determined.

Note: Because end arrows go from the endpoint toward the penultimate point, the graphics::arrows() default of angle = 30, code = 2 will result in arrows pointing against the direction of travel.

Examples

library(trackframe)

data("tf_mini", package = "trackframe")

data <- tf_mini
class(data)
#> [1] "trackframe" "data.frame"

plot(data)

# set different theme
library(tinyplot)

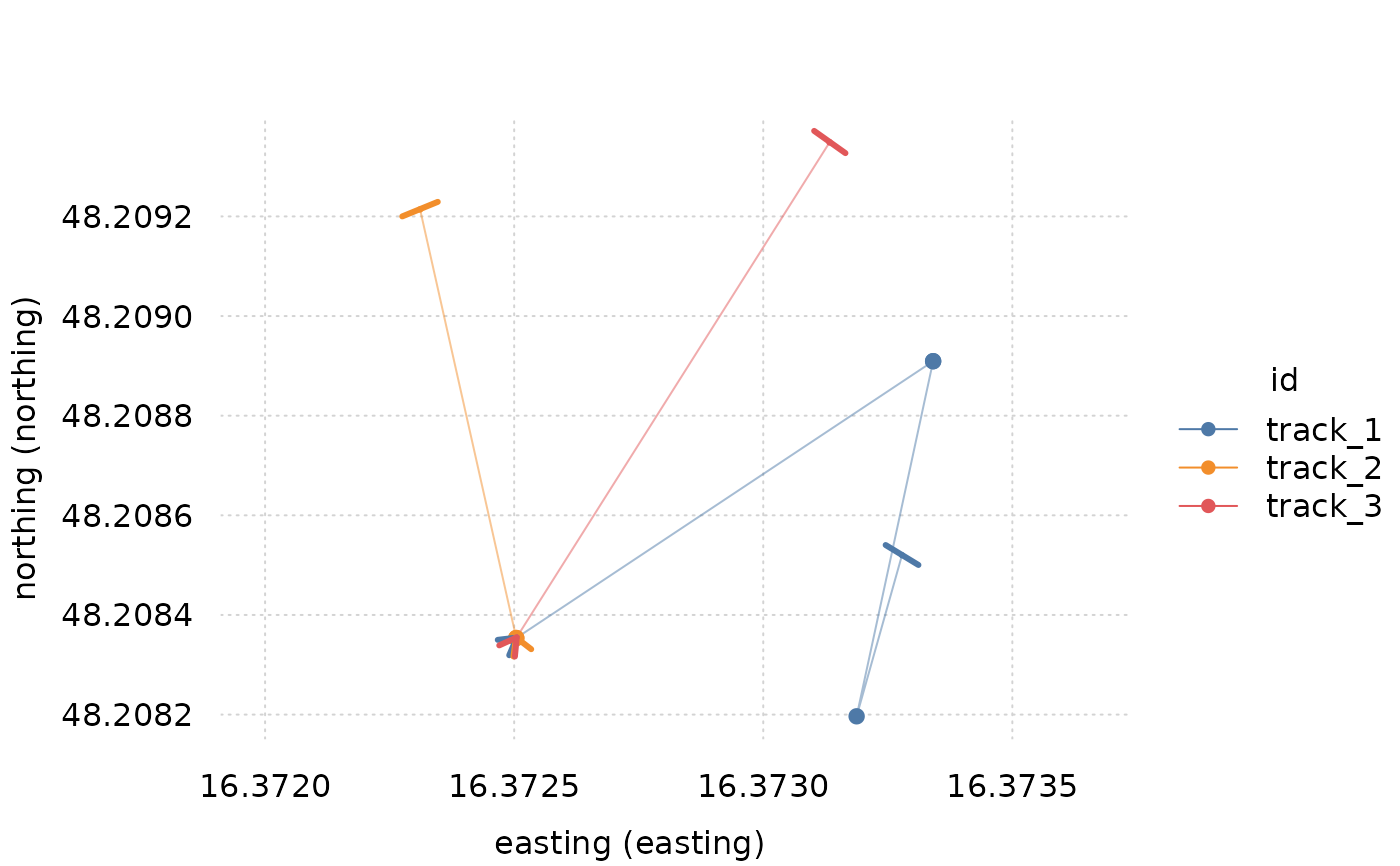

tinytheme("clean2")
plot(data)


plot(data)

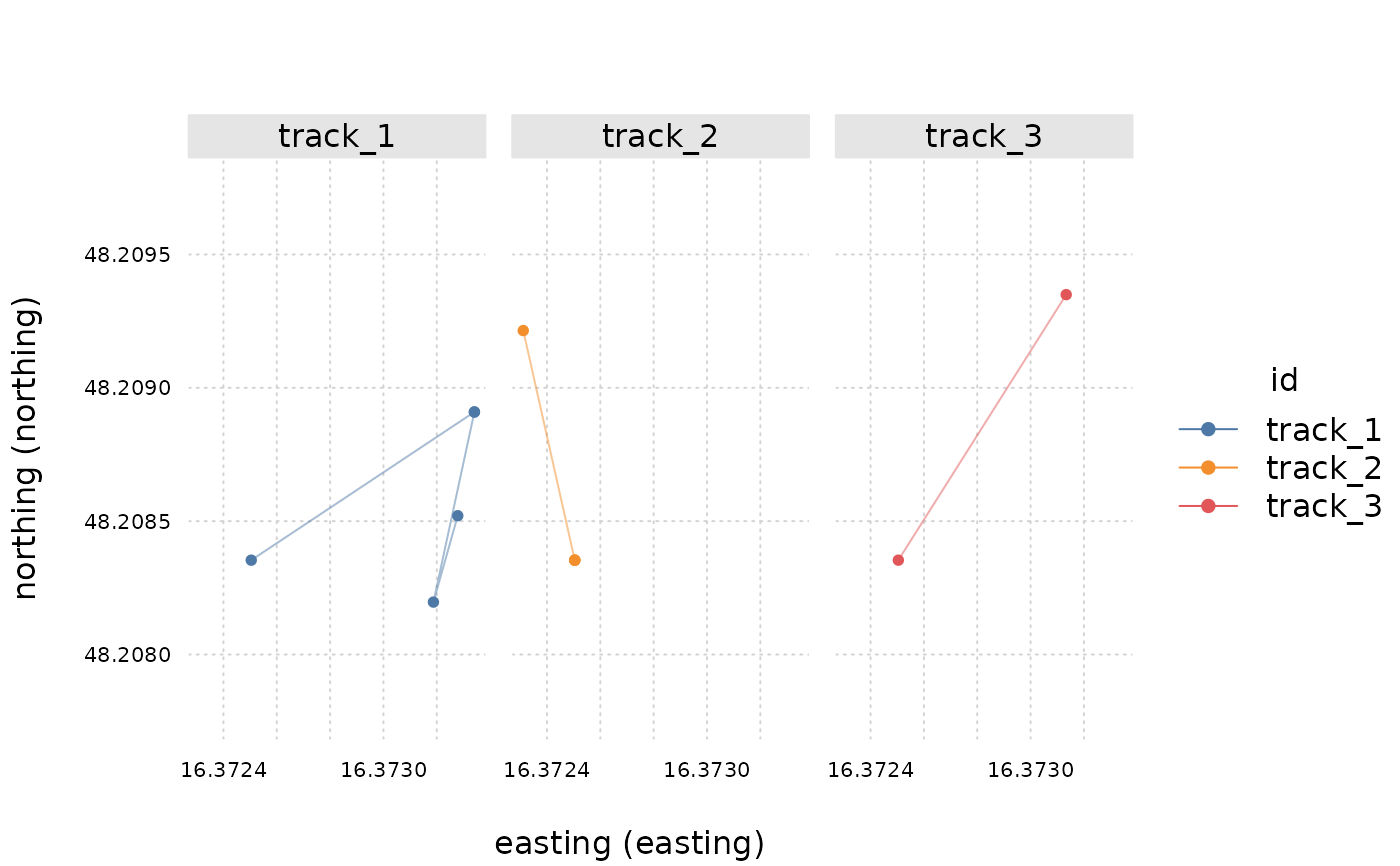

# with facets and no indicator arrows
plot(
  data,
  facet = TRUE,
  start_indicator = FALSE,
  end_indicator = FALSE
)


# allow free y axis
plot(data, facet.args = list("free" = TRUE))


track_1 <- select_id(data, "track_1")

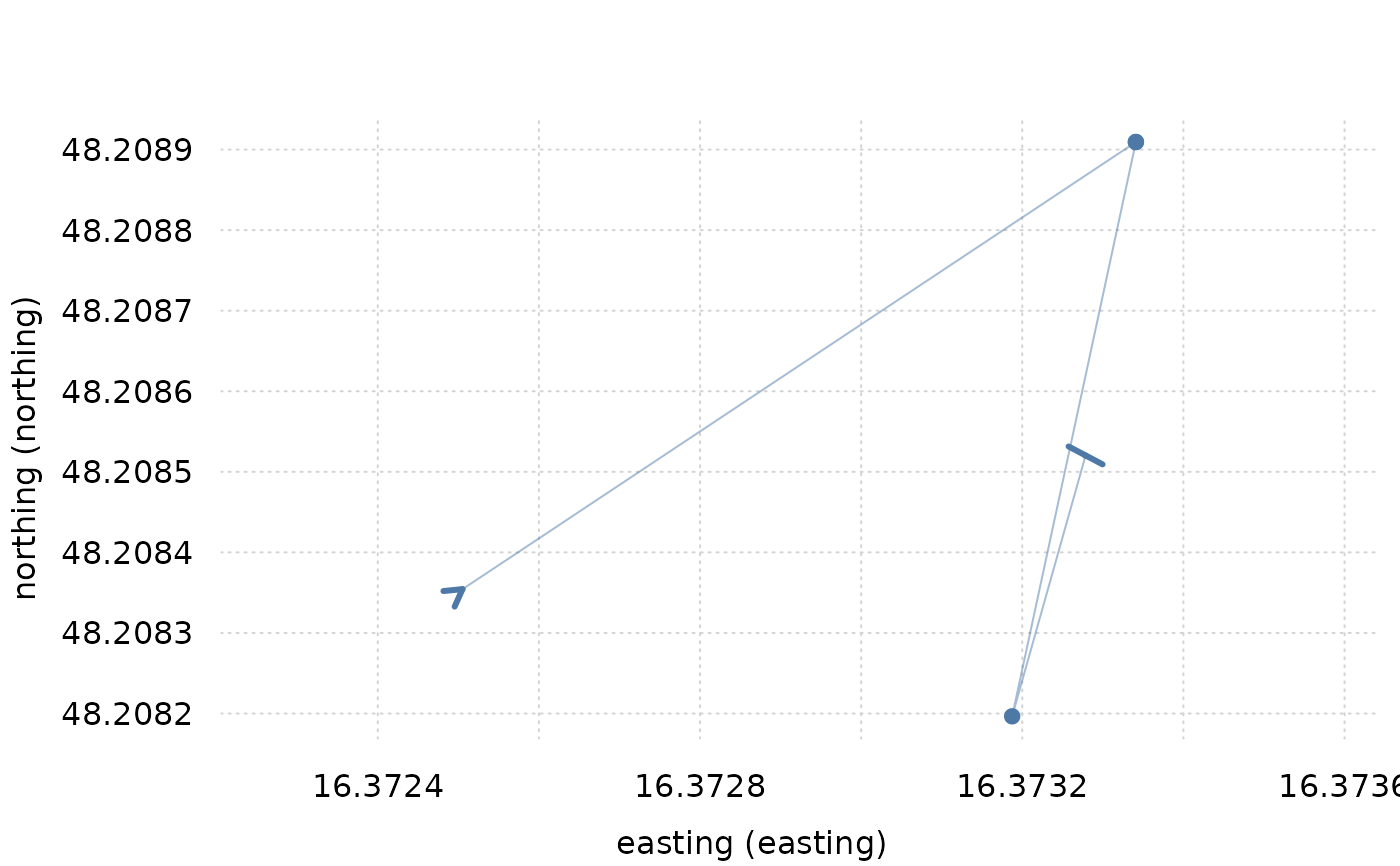

plot(track_1)

plot(track_1, direction = TRUE)

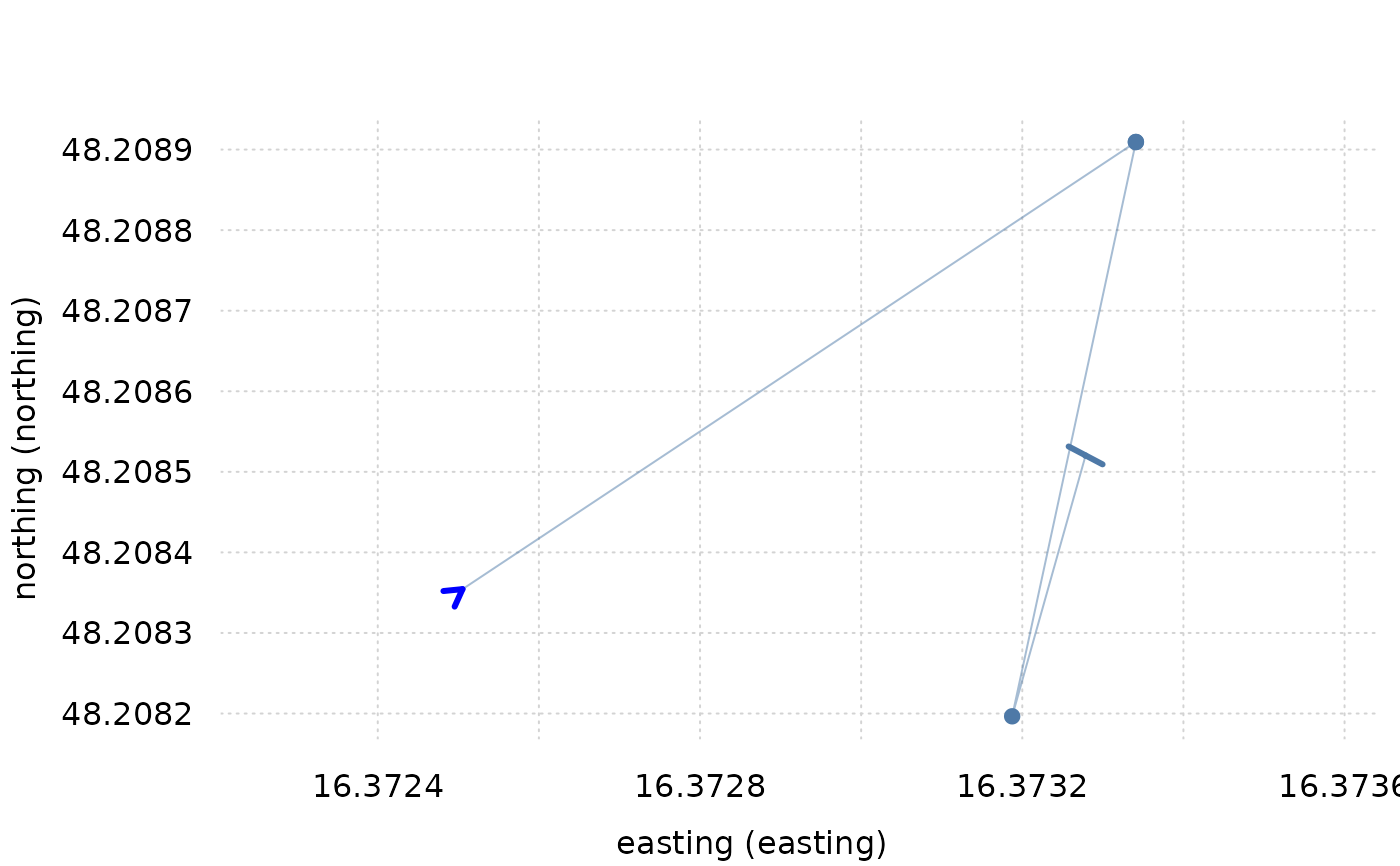

# Customize start/stop arrows
plot(track_1, start_indicator_style = list(col = "blue"))
